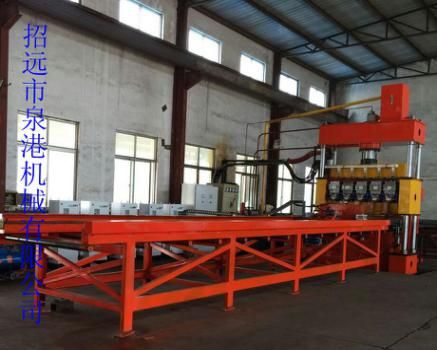

Steel Grating Equipment
[Classification:Steel Grating Equipment] [Release time:2016-11-10] [Return]
1 :Machine required environment Conditions
2.1Environment Weather Conditions
Temperature : 0℃-40℃
Relative Humidity ≤89%
1.2 Power Supply:3-phase AC 380V±5%/50HZ
Transformer 630 KVA, Rated Current Input: 800A-1000A.
The spike current : 2100A -3600A.
Rated Air Pressure: 0.8 Mpa.
1.3 :Water:cooling water≤30℃,Flow: ≧500L/min.
cooling water must be no impurity and be filtrated and is circulating。
2 Machine Technical Capability
2.1 Function requirements:
2.1.1 Single-Cylinder Four Column Hydraulic and oil Press Machine
Adjustable Pressure , Max. Pressure 160T
Max. Work Remove distance :400mm
2.1.2 Automatic welding Cycle≤10s, Welding Capacity:500㎡/8 hours.
2.1.3 Automatic Feed Crossbar
2.1.4 Handed Bearing bar Stuff, Automatically Feed
2.1.5 Auto-welding 2 crossbars one time , two crossbars pitch ≥20mm
2.2 Technology parameters:
2.2.1 Steel Ranges
Item
bearing bar pitch 30mm,40mm
(mm)
Bearing bar Height 20-100mm
Thickness 2-10mm
(mm)
Panel Size Length 7500mm
Width ≤1100mm
(mm)
Cross bar Section ≤8×8mm
Length 1150mm
Pitch ≥15mm
2.2.2 :Steel Material requirements:
2.2.2.1 Material: carbon steel BS 4360(ASTM A36)
2.2.2.2 :Bearing bar no bend hot rolled or steel strip
2.2.3 steel grating size
2.2.3.1 Length≤7500mm;
Max. welding width 1100mm(according customer requirement to design),width tolerance±5mm;
Height 20-100mm。
2.2.3.2
bearing bar alignment tolerance ≤10% bearing bar width
2.2.3.3 Others must meet the national grating standards.
